Professional Electric Digital Multimeter Temperature Measurement Meter True RMS Voltmeter

Name: Professional Electric Digital Multimeter Temperature Measurement Meter True RMS Voltmeter
Brand: PEAKMETER
Price: 1 USD

Professional Electric Digital Multimeter Temperature Measurement Meter True RMS Voltmeter Manufactures

Brand Name : PEAKMETER

Model Number : PM18D

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T

Supply Ability : 150,000 Pcs Per Month

Delivery Time : 5-40 work days

Packaging Details : Product Size 190mm x89mm x50mm Product Weight Approx. 380g

Function 1 : MAX/MIN

Display : 6000 counts

Function 2 : ACV/ACA TRMS

Frequency : 9.999Hz~9.999MHz

Function 3 : Relative value measurement

Temperature : -20℃~1000℃

Contact Now

Professional electric Digital Multimeter temperature measurement meter True RMS voltmeter

English User Manual:https://drive.google.com/open?id=1HcFFSdh220gP1FJrMc0MDpKZyoRXl_5T

Features of Digital Multimeter with T-RMS

Overload Protection and Battery Voltage Indication

Manual Range, Data Hold, Non-Contact Voltage Detector, Diode Test, Transistor and Continuity Measurement

Built-in Flashlight for easy lighting

Specifications	Range	Accuracy
DC Voltage	600mV/6V/60V/600V/1000V	±(0.5%+3)
AC Voltage	6V/60V	±(0.8%+3)
	600V/1000V	±(1.0%+10)
DC Current	60uA/6mA/60mA/600mA	±(0.8%+3)
	10A	±(1.2%+3)
AC Current	60mA/600mA	±(1.0%+3)
	10A	±(1.5%+3)
Resistance	600Ω/6kΩ/60kΩ/600kΩ/6MΩ	±(0.8%+3)
	60MΩ	±(1.2%+30)
Frequency	9.999Hz/99.99Hz/999.9Hz/9.999kHz/ 99.99kHz/999.9kHz/9.999MHz	±(1.0%+3)
Duty	1%~99%	±(3.0%+5)
Capacitance	6nF	±(4.0%+30)
	60nF/600nF/6uF/60uF/600uF/6mF	±(4.0%+5)
	100mF	±(5.0%+3)
Temperature	-20℃~1000℃	±(1.0%+3)
	-4℉~1832℉
Feature
Display	6000 counts
Live Wire Detection	√
NCV Detection	√
Temperature measurement	√
MAX/MIN	√
Relative measurement	√
Continuity Test	√
Diode Test	√
Data Hold	√
Back Light	√
Flash Light	√
Auto Power Off	√
General
Power Supply	3*1.5V AAA
Size	194mm90mm55mm
Weight	About 340g
Safety Rating	EN61010-1, EN61010-2-033, EN61326, CAT Ⅲ 1000V

Description of Digital Multimeter with T-RMS

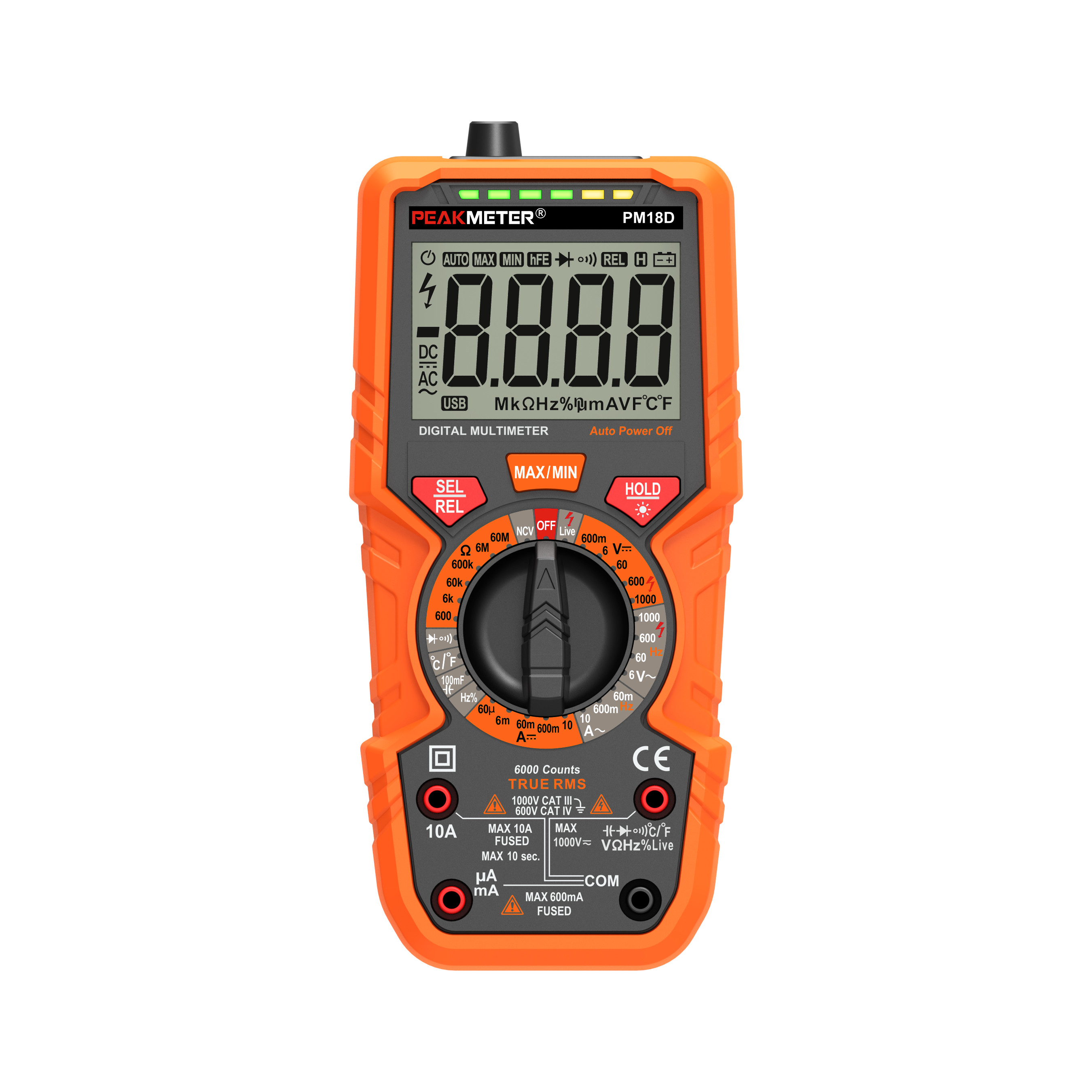

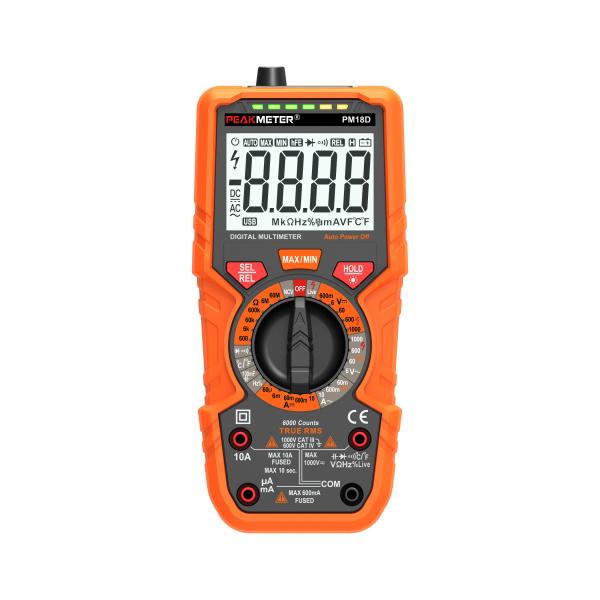

PM18D is a True RMS handheld measurement digital multimeter. It has a high-definition LCD digital display, and has backlight, flashlight functions for easy reading. This instrument can be used to measure AC/DC voltage, AC/DC current, resistance, frequency, temperature, duty cycle, capacitance, relative value, etc. The instrument also has live wire detection, non-contact voltage detection, auto power off, data hold, MAX/MIN and other functions. Whether professional, factory, school, enthusiasts or family use, it is an ideal multi-function instrument.

AC/DC Voltage, AC/DC Current, resistance, frequency, capacitance, temperature measurement
MAX/MIN, REL, NCV detection, Live wire detection, diode test, data hold, back light, auto power off functions
Fuse protection: mA position: fuse (F 800mA/1000V); A position: fuse (F 11A/1000V)
Allowable max voltage between terminal to be measured and ground : 1000V DC or 1000V AC RMS.
