Hand-held Wood Moisture Tester 4 Type Tree Test Paper And Wall Test Max Min Value Measurement

  • 1
  • 2
  • 3

Brand Name : PEAKMETER

Model Number : PM6811A

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T

Supply Ability : 150,000 Pcs Per Month

Delivery Time : 5-40 work days

Packaging Details : Product Size 136mm*54mm*28mm Product Weight Approx93g

Function 1 : MAX/MIN

Measurement Range : 2.0%~75.0%

Function 2 : Data Hold

Back Light : green/yellow/red

Function 3 : Auto Power Off

Display : Maximum display value 75.0%

Contact Now

Hand-held Wood Moisture Tester 4 type tree test Paper and Wall test Max Min value measurement

Features of Wood Moisture Tester

  • Portable high-precision pin type moisture detector
  • 4 major categories of tree species detection, covering the majority of tree species
  • Compact appearance with large LCD display screen for easy and intuitive reading
  • Tree backlight colors for intuitive judgment of low humidity, medium humidity, and high humidity. Simultaneously, the backlight can be manually turned off
  • Can measure the humidity of different papers and building walls
  • When the battery level is low, there will be a battery undervoltage prompt on the screen
  • The instrument has an automatic shutdown function

Specification

Range

Accuracy

Illustration

Rate of water content

2.0%~75.0%

±1.0%

Tree species 1: 2.0%~25.0%

Tree species 2: 3.0%~30.0%

Tree species 3: 4.0%~35.0%

Tree species 4: 5.0%~40.0%

Paper: 5.0%~75.0%

Wall: 1.5%~30.0%

Feature

Illustration

Display

Maximum display value "75.0%"

Back Light

Default or low humidity is green, medium humidity is yellow, high humidity is red, and back light can be manually turned off

Type

Low humidity (green)

Medium humidity (yellow)

High humidity (red)

Tree species 1

≤7.9%

8.0%~11.9%

≥12.0%

Tree species 2

≤10.3%

10.4%~14.8%

≥14.9%

Tree species 3

≤12.7%

12.8%~17.6%

≥17.7%

Tree species 4

≤14.8%

14.9%~20.4%

≥20.5%

Paper

≤11.9%

12.0%~15.9%

≥16.0%

Wall

≤6.9%

7.0%~9.9%

≥10.0%

MAX/MIN

√

Data Hold

√

Auto Power Off

√

General

Power Supply

2*1.5V AAA Battery

Size

136mm*54mm*28mm

Weight

93g

Product Description of Wood Moisture Tester

PM6811A is a portable, stable, reliable, and safe resistance type wood moisture tester. It adopts a high-performance microcontroller as the measurement control core, with fast measurement response, high accuracy, and low power consumption. This instrument has 4 tree species as well as paper packaging and building wall measurement modes. It has three backlight colors, which can visually determine low humidity, medium humidity, and high humidity. The instrument also has a battery undervoltage prompt and automatic Power Off function.

  • Back Light – The back light is green by default or at low humidity, yellow at medium humidity, and red at high humidity. The backlight can be manually turned off.
  • Functions – Data Hold, Mode Selection, Back Light, Maximum/Minimum Value, Auto Power Off, Low Voltage Indication.

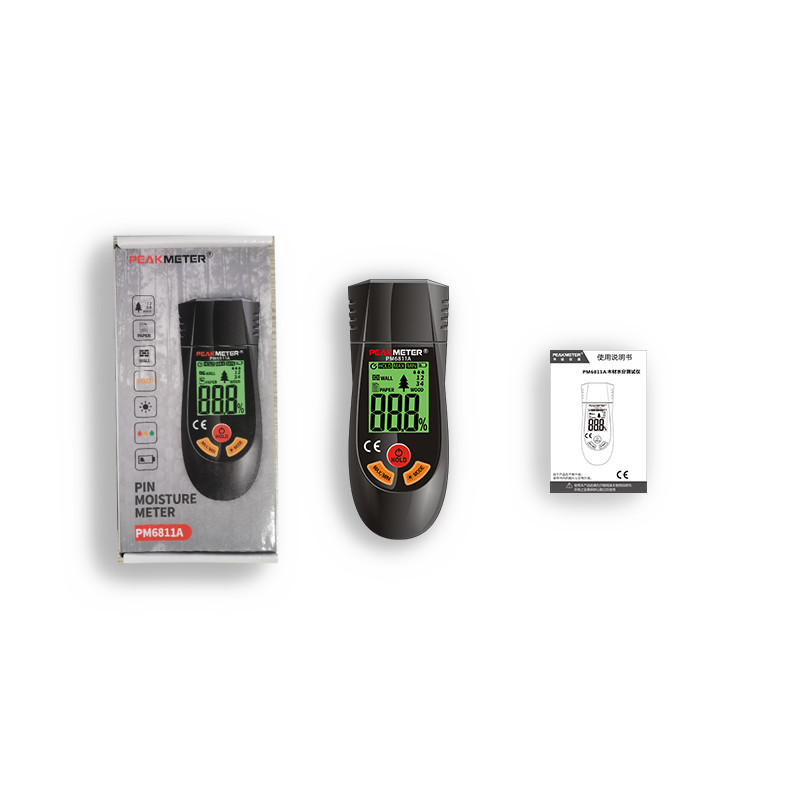

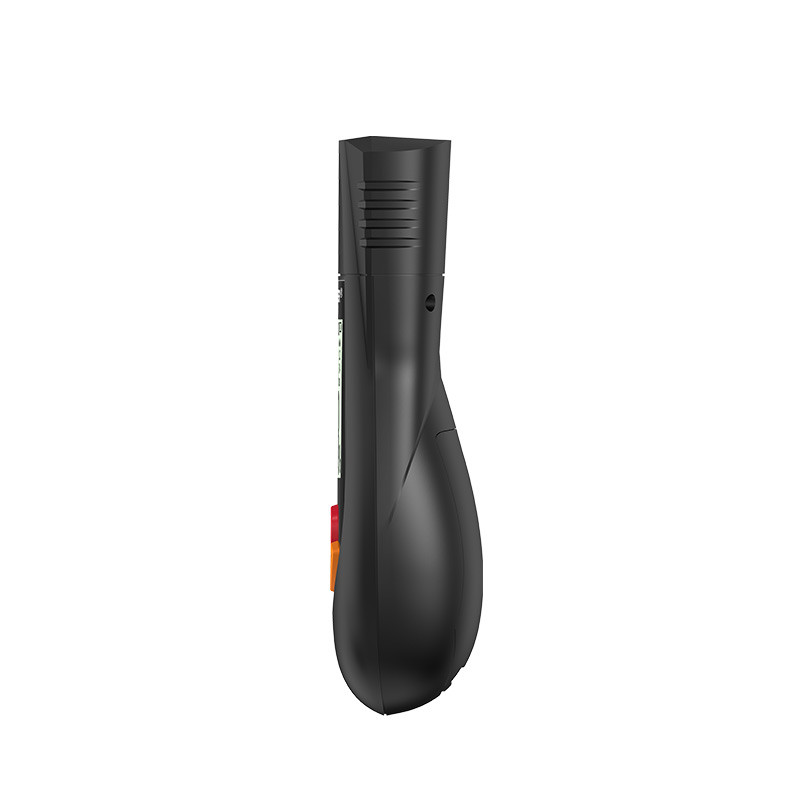

Detailed Images of Wood Moisture Tester

Hand-held Wood Moisture Tester 4 Type Tree Test Paper And Wall Test Max Min Value MeasurementHand-held Wood Moisture Tester 4 Type Tree Test Paper And Wall Test Max Min Value MeasurementHand-held Wood Moisture Tester 4 Type Tree Test Paper And Wall Test Max Min Value MeasurementHand-held Wood Moisture Tester 4 Type Tree Test Paper And Wall Test Max Min Value Measurement
