Auto and Manual Range Digital Clamp Meter T-RMS INRUSH Current meter MAX MIN values measurement

Name: Auto and Manual Range Digital Clamp Meter TRMS INRUSH Current meter MAX MIN values measurement
Brand: PEAKMETER
Price: 1 USD

Auto and Manual Range Digital Clamp Meter T-RMS INRUSH Current meter MAX MIN values measurement Manufactures

Brand Name : PEAKMETER

Model Number : PM2008B

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T

Supply Ability : 150,000 Pcs Per Month

Delivery Time : 5-40 work days

Packaging Details : Product Size 208mm x78mm x35mm Product Weight Approx245g

Display : 6000Counts

Temperature : -20~1000℃

Function 1 : MAX/MIN

Frequency Measurement : 10Hz~10MkHz

Function 2 : Auto and Manual Range

Product Name : Digital Clamp Meter Multimeter

Function 3 : Inrush Current Test

Capacitance measurement : 10nF~100mF

Contact Now

Digital Clamp Meters With Auto And Manual Range , Continuity And Diode Testing

Features of Auto Range Digital Clamp Meter

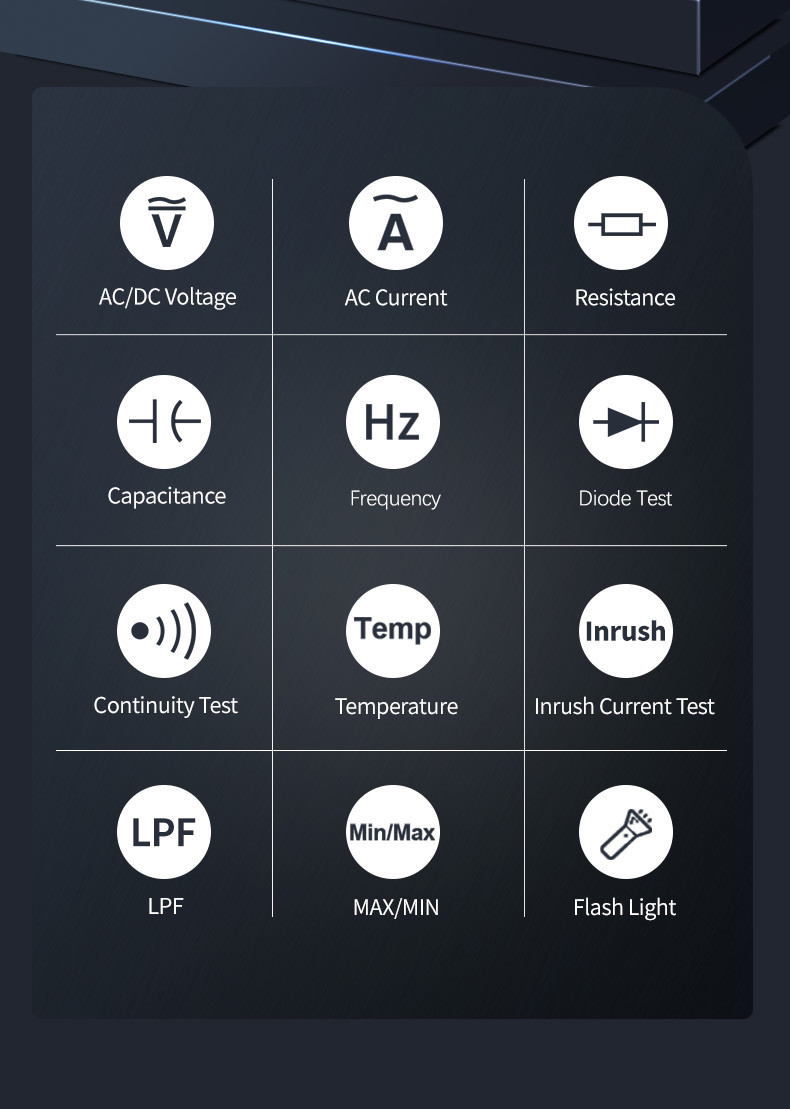

AC DC Voltage, AC Current, Resistance, Capacitance, Frequency, Temperature measurement
Data Hold, Back Light, Inrush current test, Auto and Manual Range, Maximum/minimum value, Flash light
Full range overload protection
Unit display: display of function and electricity unit

Specifications	Range	Accuracy
DC Voltage	6V/60V/600V	±(0.5%+3)
AC Voltage	6V/60V/600V	±(0.8%+5)
AC Current	6A/60A/600A	±(2.5%+5)
Resistance	600Ω/6kΩ/60kΩ/600kΩ/6MΩ	±(1.0%+3)
	60MΩ	±(2.0%+3)
Capacitance	10nF/100nF/1uF/10uF/100uF	±(3.0%+5)
	1mF/10mF	±(4.0%+5)
	100mF	±(5.0%+5)
Frequency	10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz	±(0.5%+5)
Duty	1%~99%	±(3.0%+2)
Temperature	-20℃~1000℃	±(1.0%+2)
	-4℉~1832℉
Features
Display	6000 counts
Data Hold	√
Back Light	√
Inrush Current test	√
LPF	√
MAX/MIN	√
Flash Light	√
Diode Test	√
Continuity Test	√
Auto Power Off	√
General
Power Supply	3*1.5V AAA Battery
Size	205mm71mm35mm
Jaw Size	φ23mm
Weight	340g
Safety Rating	EN61010-1, EN61010-2-032, EN61326, CAT Ⅲ 600V

Product Description of Auto Range Digital Clamp Meter

The instrument of this series is a small hand-held 6000 counts digital clamp meter featuring stable,highly reliable and anti-drop performance. It is provided with a LCD display for clear reading. The circuit design takes LSI double integral A/D converter as its core under the protection of an overload protection circuit,making it a superior and handy instrument.

It can be used to measure DC and AC voltge,DC current,resistance,diodes, and in-circuit continuity test.
This digital clamp meter is provided with a LCD back light.
Specially, it has a Max value hold function, auto/manaul ranging select function and working backlight which is easy to use.

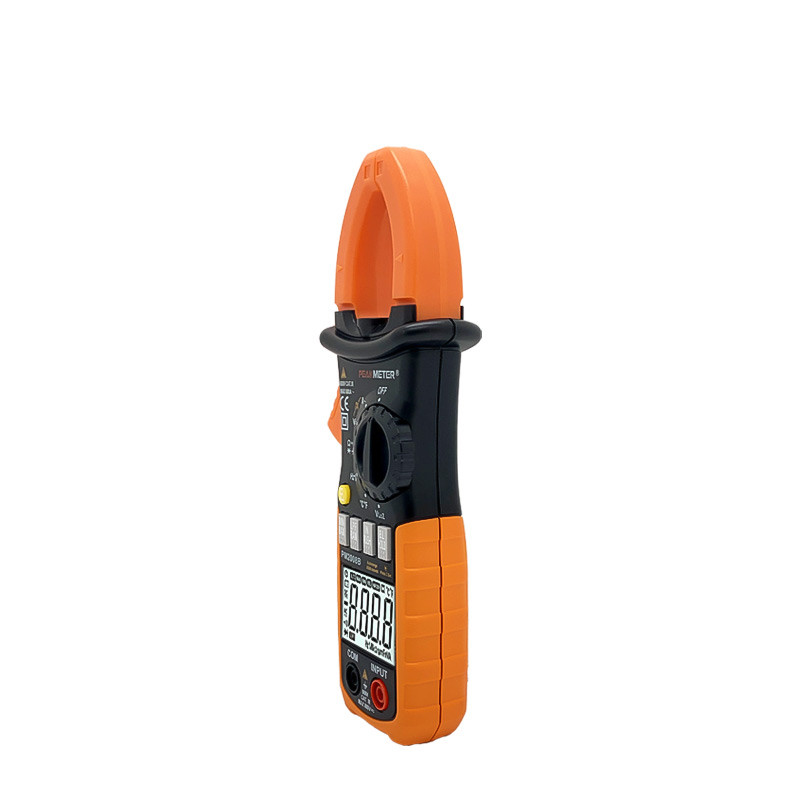

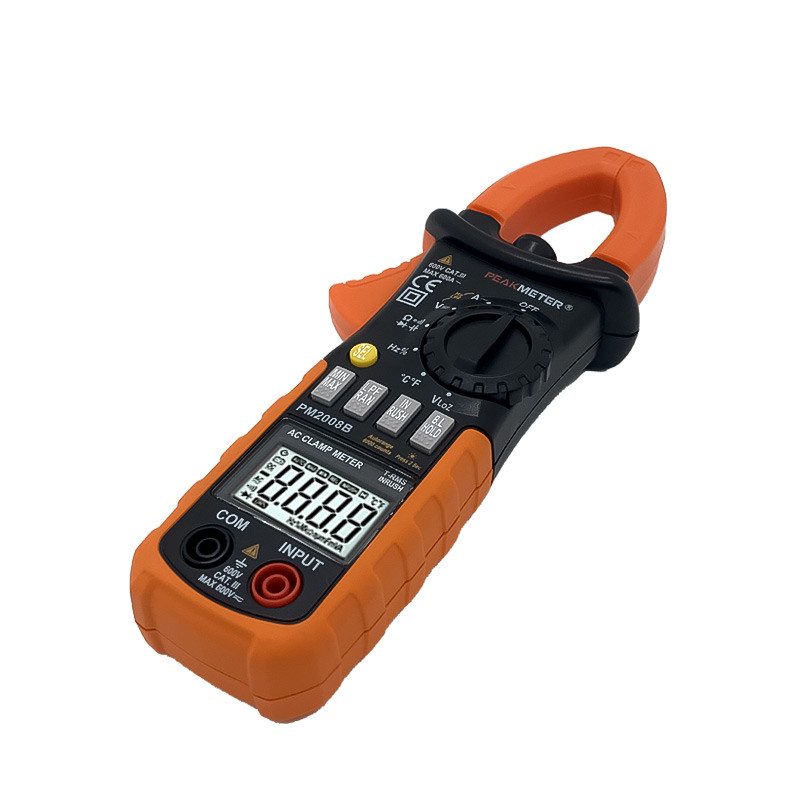

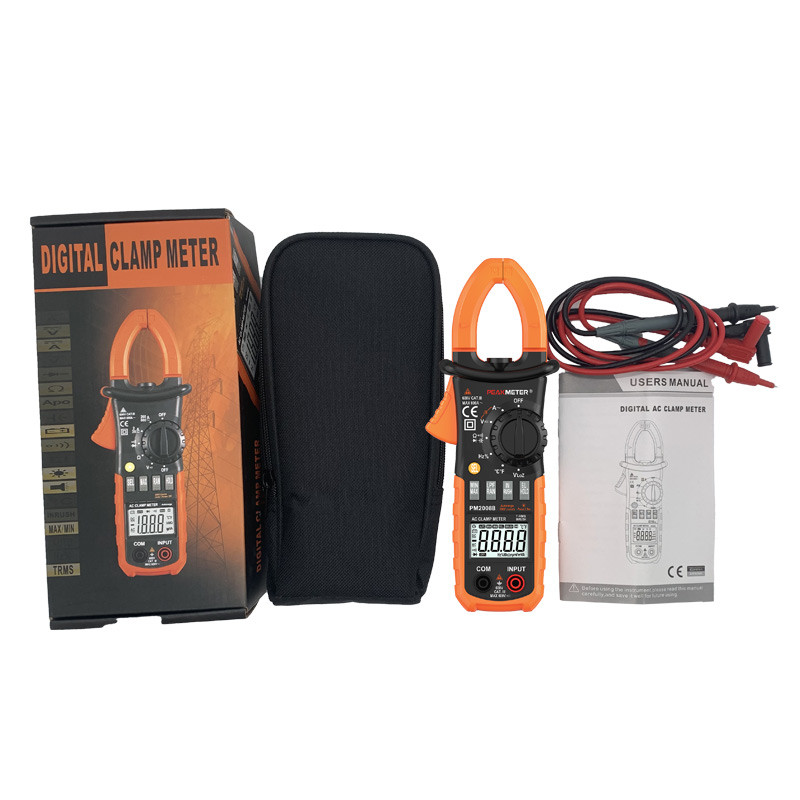

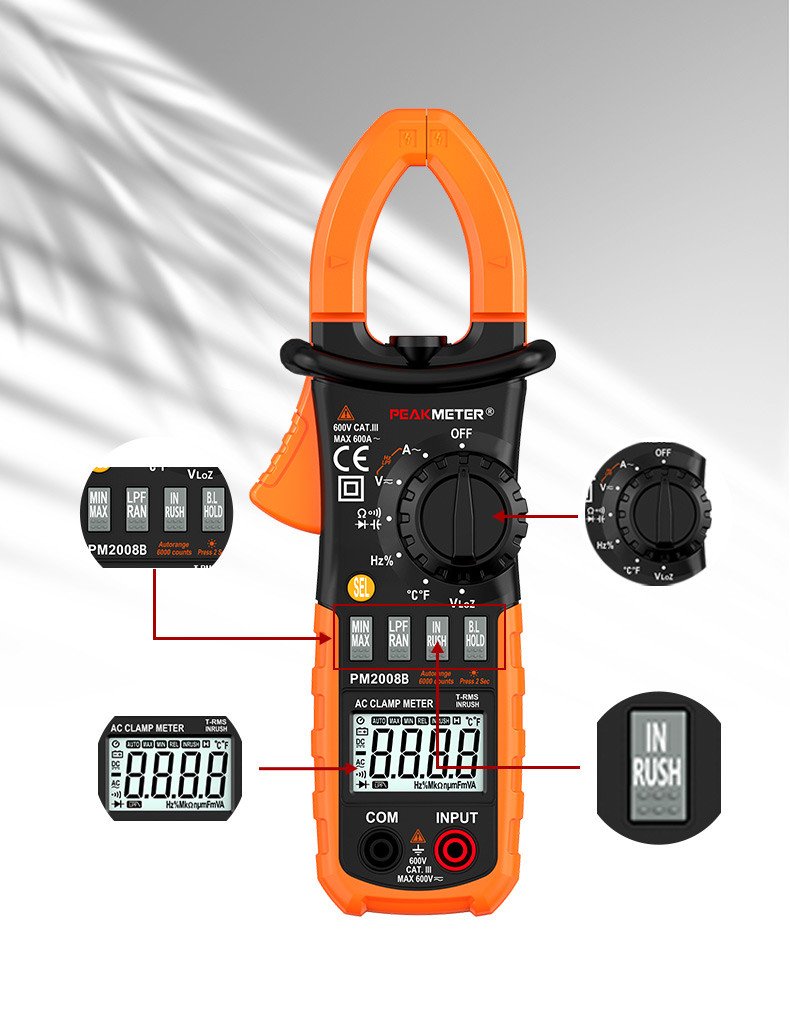

Detailed Images of Auto Range Digital Clamp Meter

Auto and Manual Range Digital Clamp Meter T-RMS INRUSH Current meter MAX MIN values measurement

Our Target

We aim to produce intelligent instruments, provide high quality services, and become an innovative manufacturer.

R&D Team

Our R&D team have over 20 years R&D experience in instrument industry .

Mission

Our mission is to get our work done well to become customer’s reliable business friend. S.E.Q( Service , Economic pricing , Quality ) is our concern , we know what you need ,and we know what we have .
