6000V Multifunctional AC/DC Digital Clamp Meter With NCV Detector

Name: 6000V Multifunctional ACDC Digital Clamp Meter With NCV Detector
Brand: PEAKMETER
Price: 1 USD

6000V Multifunctional AC/DC Digital Clamp Meter With NCV Detector Manufactures

Brand Name : PEAKMETER

Model Number : PM2118S

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T

Supply Ability : 150,000 Pcs Per Month

Delivery Time : 5-40 work days

Packaging Details : Product Size 250mm x99mm x43mm Product Weight Approx410g

Function 1 : NCV

Display : 6000 counts

Function 2 : Data hold

Current Measurement : 600A AC/DC

Function 3 : Low Battery Indication

Product Name : Smart AC/DC Clamp Meter

Contact Now

6000V Multifunctional AC/DC Digital Clamp Meter With NCV Detector

Features of AC/DC Digital Clamp Meter

Automatically select measurement and range.
Overload protection for the whole measurement range.
Data hold function low power indication, and auto power off
Maximum allowable voltage between the measuring terminal and the Earth:6000V DC or 6000V AC.
Professional AC Voltage Detector with NCV Detection.
High quality and easy-to-use.
Mini and easy to carry

Specifications	Range	Accuracy
DC Voltage	6V/60V/600V	±(0.5%+3)
DC Current	60A/600A	±(3.0%+10)
AC Voltage	6V/60V/600V	±(0.8%+5)
AC Current (40~65Hz)	60A/400A	±(2.5%+8)
	400AV~600A	±(3.0%+10)
Resistance	6kΩ/60kΩ/600kΩ/6MΩ/10MΩ	±(0.8%+3)
Frequency	60Hz~1000Hz	±(1.0%+5)
Features
Display	6000 counts
Frequency (Clamp)	1kHz
Frequency (Voltage)	1kHz
Auto Range	√
Continuity	√
V/Ω/A Auto Scan	√
Data Hold	√
Back Light	√
NCV	√
Low Battery Indication	√
Auto Power Off	√
Dual Display (ACV+Freq, ACA+Freq)	√
General
Power Supply	2*1.5V AAA Batteries
Net weight	177g (batteries are not included)
Gross weight	369g
Size	189mm64mm34mm
Jaw Size	Ø24mm
Safety Rating	EN61010-1, EN61010-2-033, EN61326, CAT. Ⅲ 600V

Product Description of AC/DC Digital Clamp Meter

This Smart AC/DC Clamp multimeter is an innovative, which is breaking through the traditional clamp Multimeter type. It is a revolutionary product of measurement tools, which is a unique type prior to the world's major instrument manufacturers. The product features possess current measurement and simultaneously display the current frequency, voltage measurement with frequency display, voltage and current can be measured at the same time, the display screen shows the voltage and current . Its designed is according to EN61010-1, EN61010-2-032, and CAT.III600V Concerning Safety Requirements.

If the process of measurement, if the ambient light is too dim, causing reading difficulties, backlight function will help user to read value clearly.
If after 10 minutes when the meter is on without any operation, it will go into hibernation and automatically shut down to save power.

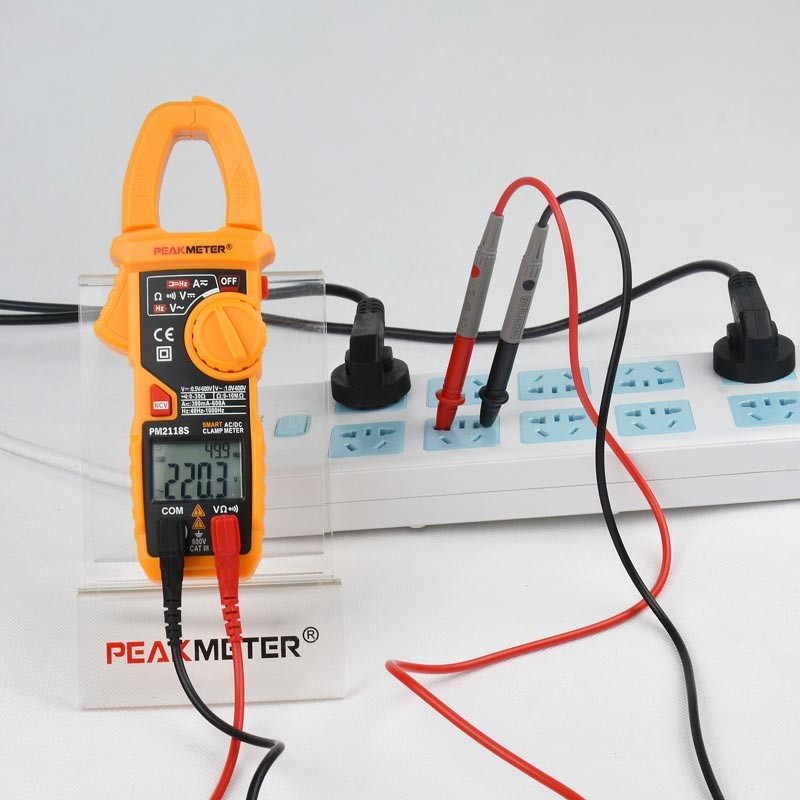

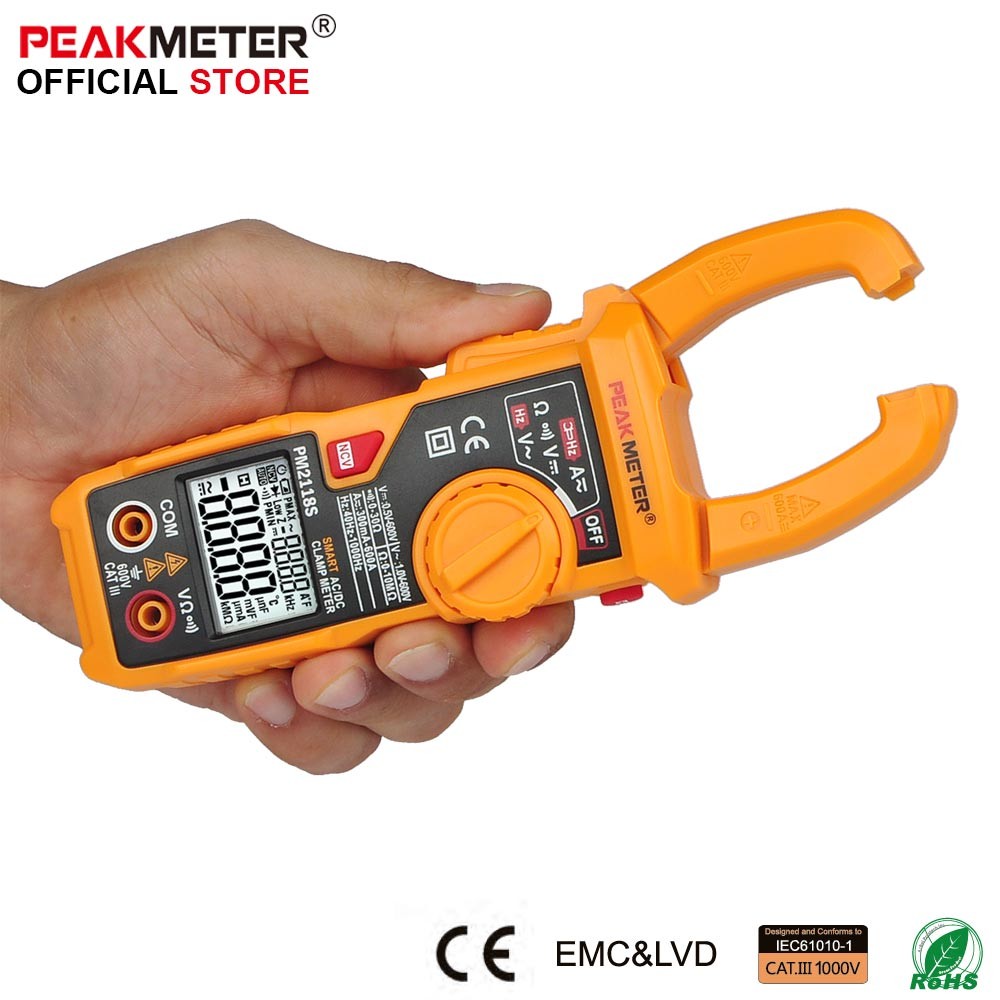

Detailed Images of AC/DC Digital Clamp Meter

6000V Multifunctional AC/DC Digital Clamp Meter With NCV Detector
