Multifunctional Auto Range Digital Multimeter Sound Level Relative Value Measurement

Name: Multifunctional Auto Range Digital Multimeter Sound Level Relative Value Measurement
Brand: PEAKMETER
Price: 1 USD

Multifunctional Auto Range Digital Multimeter Sound Level Relative Value Measurement Manufactures

Brand Name : PEAKMETER

Model Number : PM8229

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T

Supply Ability : 150,000 Pcs Per Month

Delivery Time : 5-40 work days

Packaging Details : Product Size 204mm x93mm x57mm Product Weight Approx. 580g

Function 1 : Noise Test

Display : 6000 Counts

Function 2 : Auto and Manual Range

Illumination : 4000Lux/40000Lux

Measuring Frequency : 9.99Hz~9.999MHz

Product Namee : Auto Range Digital Multimeter

Contact Now

Multifunctional Digital Multimeter With AC/DC Current , Sound Level , Relative Value Measurement

English User Manual:https://drive.google.com/open?id=1ljOAGGEPd_lT6xwQYJyYhgGdm4GcmeGR

Features of Multifunctional Digital Multimeter

Measure AC&DC Voltage, Frequency, Duty, AC & DC Current, Resistance
Thermocouple temperature measurement
Display: 6000 Counts
Auto and Manual Range
Relative Measurement
Data hold
Diode test
Continuity
Backlight

Specifications	Range	Accuracy
DC Voltage	60mV/600mV/6V/60V/600V/1000V	±(0.7%+2)
AC Voltage	60mV/600mV/6V/60V	±(0.8%+3)
AC Voltage	600V	±(1.0%+3)
DC Current	600μA/6000μA/60mA/600mA/6A	±(1.2%+3)
DC Current	10A	±(2.0%+10)
AC Current	600μA/6000μA/60mA/600mA/6A	±(1.5%+3)
AC Current	10A	±(3.0%+10)
Resistance	600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ	±(1.2%+5)
Resistance	60MΩ	±(2.0%+5)
Capacitance	10nF/100nF/1000nF/10uF/100uF/1000uF/10mF	±(3.0%+3)
Frequency	9.999Hz/99.99Hz/999.9Hz/9.999kHz/ 99.99kHz/999.9kHz/9.999MHz	±(1.0%+5)
Noise	40-100dB	±3.5%dB at 94dB
Illumination (Lux)	4000/40000	(5.0%+10)
Humidity	20-95%	±5.0%RH
Ambient Temperature	0℃~40℃	±2℃
Ambient Temperature	32℉~104℉	±4℉
Temperature Measurement with Thermocouple	-20℃~0℃	±5.0%
	0℃~400℃	±1.0%
	400℃~1000℃	±2.0%
	-4℉~32℉	±5.0%
	32℉~752℉	±1.0%
	752℉~1832℉	±2.0%
Feature
Display	6000 Counts
Diode	√
Continuity	√
Illumination (Lux)	√
Humidity	√
Time	√
Data Storage	√
Back Light	√
Manual and Automatic Range	√
MAX/MIN/REL	√
Data Hold	√
General
Power Supply	4*1.5V AA Batteries
Size	204mm94mm57mm
Weight	about 410g
Safety Rating	EN61010-1, EN61010-2-033, EN61326, CAT. Ⅲ 1000V

Product Description of Multifunctional Digital Multimeter

This instrument can be used to measure DC Voltage, AC Voltage, DC Current, AC Current, Resistance, Capacitance, Frequency and Duty Ratio, Diode Test, Connectivity Test, Temperature, Luminance, Humidity. Manual and automatic range. Convenient exchange makes your measurement more accurate. Relative value measurement function. In this mode, the instrument display value = actual value-set reference value. Large LCD screen with backlight can help the user see the data clearly even in the night. Auto power-off function. If there are no operations within 15 minutes as of the instrument is turned on, the instrument will automatically enter into sleep state.

The instrument is equipped with manual and automatic range. In automatic range mode, the instrument will select the best range for the input signal detected, so it is convenient that the user does not need to re-select range when changing the measuring signal.
The instrument is equipped with backlight function for the convenience that the user accurately read the measurement results in places with bad lighting conditions.

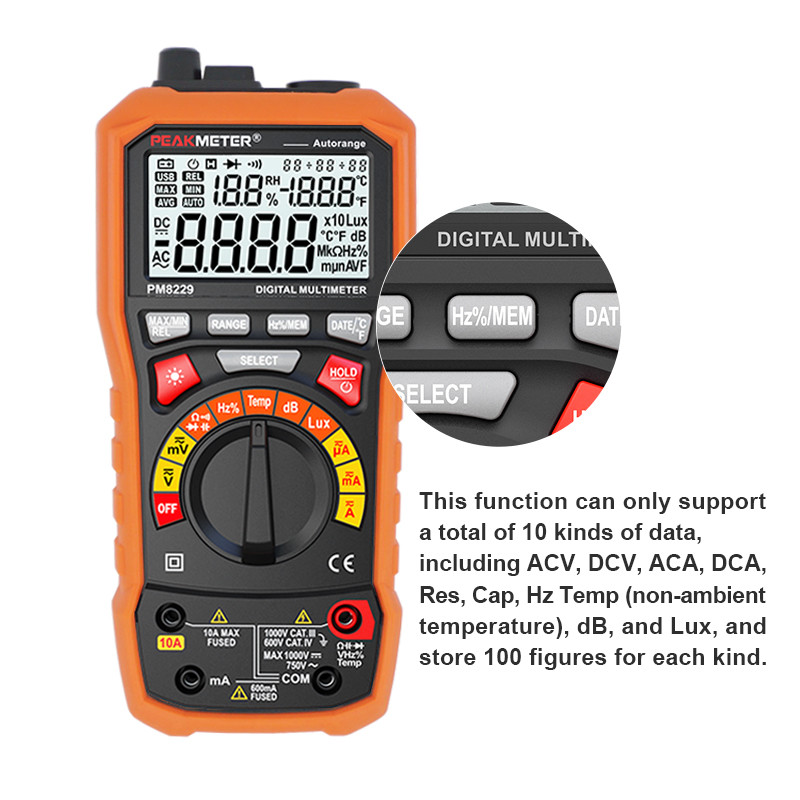

Detailed Images of Multifunctional Digital Multimeter

Multifunctional Auto Range Digital Multimeter Sound Level Relative Value Measurement
