NCV Detection Auto Range Digital Multimeter Multifunctional Stable Performance

NCV Detection Auto Range Digital Multimeter Multifunctional Stable Performance

Brand Name : PEAKMETER
Model Number : PM8248S
Certification : CE
Place of Origin : China
MOQ : 1
Price : Negotiation
Payment Terms : T/T
Supply Ability : 150,000 Pcs Per Month
Delivery Time : 5-40 work days
Packaging Details : Product Size 169mm*83mm*53mm Product Weight Approx. 250g
Product Name : Auto Range Digital Multimeter
Measuring Voltage : 0~600V AC/DC
Measuring Resistance : 0-10MΩ
Display : 6000 Counts
Measuring Current : 0~600mA
Operating Temperature : 0~40
Contact Now

NCV Detection , Frequency And Temperature Measurement , Smart Digital Meter With Auto Range


English User Manual:https://drive.google.com/open?id=1llsjGZN6IvsUTk4LZftzHtVCGF2C1_25

Features

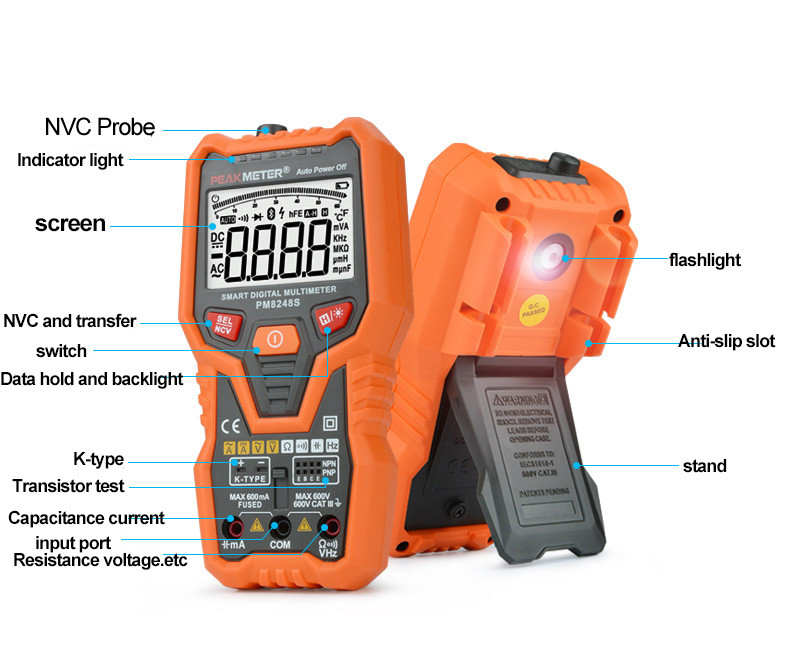

PM8248S is a Multi - Functional Smart multimeter with Auto Range, it can measure capacitance, resistance, current, voltage, frequency, temperature, transistor and NCV Detection.It has a fully automatic cruise test system, which can intelligently detect no burning meter and non-contact line. PM8248S can meet the needs of most electrical surveyors and protect their safety wheil measuring.

  • Auto range DMM, that full scale is 2000 counts
  • Display:3 1/2 digit LCD display
  • Over load protection: used the PTC protection circuit for resistance, frequency measurement.

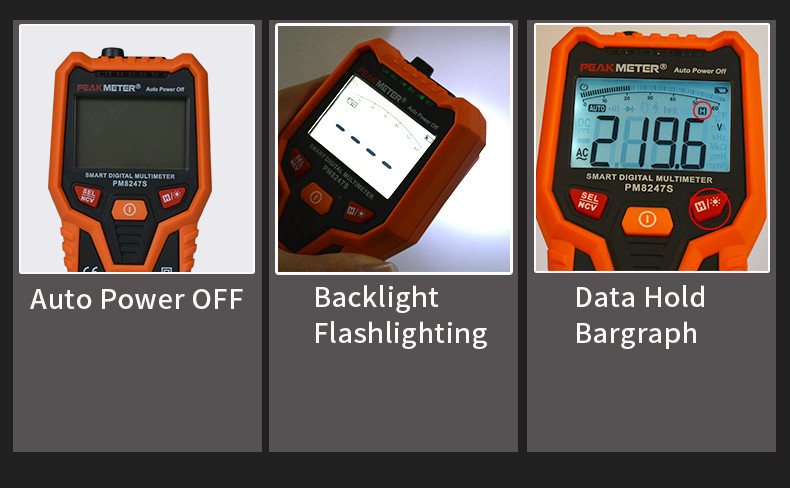

  • Data hold function
  • Max value hold function
  • Back light

Product Description


SPECIFICATIONSRANGEACCURACY
DC Voltage6V/60V/600V±(0.8%+3)
AC Voltage6V/60V/600V±(1.2%+3)
DC Current600mA±(1.0%+3)
AC Current600mA±(1.5%+3)
Resistance(Ω)6kΩ/60kΩ/600kΩ±(1.0%+3)
6MΩ/10MΩ±(1.2%+5)
Capacitance(C)60nF/600nF/6μF/60μF/600μF/6mF±(4.0%+5)
Frequency30~1000Hz±(0.5%+2)
Temperature(℃/℉)-20℃~1300℃±(1.0+3)
-4℉~2372℉±(1.0+3)
FEATURE
Display6000 counts
Auto Range
Bargraph Display
Transistor
Continuity
NCV
HFE
Live Test
Data Hold
Worklight
Back Light
Auto Power Off
GENERAL
Power Supply3×1.5V AAA batteries
WeightApprox. 250g(without batteries)
Size169mm×83mm×53mm
Safety RatingEN61010-1,EN61010-2-033 EN61326,CAT.Ⅲ600V
